OAuth Token Exchange (RFC 8693): Delegated Access Explained

Right now, somewhere in your stack, an AI agent is holding a token that was issued to a person. It can reach every mailbox, repository, and customer record that token unlocks. When it acts, the audit log names the human, not the agent.

That is not a permissions problem you can solve with better scopes on the original token. It is a problem of the wrong token being in the wrong hands. OAuth token exchange is the standard built to fix it: a grant type that takes a broad credential and hands back a narrow one, stamped with who is actually carrying it.

What is OAuth token exchange?

OAuth token exchange is an OAuth 2.0 extension, defined in RFC 8693, that lets a client trade one security token for another. The client presents a token it already holds, the authorization server validates it against policy, and it returns a different token with a narrower scope, a different audience, a shorter lifetime, or a different subject. RFC 8693 frames this as a protocol for a Security Token Service that issues tokens representing impersonation and delegation.

The endpoint that performs the swap is acting as a Security Token Service (STS): the component trusted to mint tokens for one trust domain based on tokens presented from another. In OAuth terms it is just the token endpoint, invoked with the grant type urn:ietf:params:oauth:grant-type:token-exchange.

The point of the exchange is the difference between what goes in and what comes out.

Property	The token going in	The token coming out
Audience	Broad, often the whole platform	One named resource server
Scope	Everything the user consented to	Only what this task needs
Lifetime	Session length, sometimes hours	Minutes, sized to the call
Subject	The user	The user, unchanged
Actor	Absent	The agent, recorded in the act claim

That last row is the one that matters most, and it is the one most implementations skip. We will come back to it.

Why AI agents broke the old token model

OAuth was designed around a client that a user could see. You clicked "allow", the app got a token, and the app did a small number of predictable things with it. The blast radius was bounded by the fact that a human was driving.

Agents removed the human from the loop without removing the human's credentials. Three things changed at once:

• The client is now autonomous. An agent decides which tool to call, in what order, based on text it just read. Nobody approved the specific action, only the general capability.
• The client is now a fan-out point. One agent reaches ten APIs. A token broad enough to serve all ten is ten times too broad for any one of them.
• The input is untrusted. An agent that reads a web page or a ticket can be steered by that content. Prompt injection turns the agent's own permissions into the attack, so every extra scope on its token is extra attack surface. The OWASP GenAI Security Project ranks excessive agency among the top risks in LLM applications, and over-broad permissions are its root cause.

The instinct is to give the agent its own service account and move on. That fails differently: now the agent can do everything for everyone, and you have lost the connection to the person who asked for the work. What you actually need is both facts in one credential, which means the agent needs an identity of its own as a non-human principal before an exchange can say anything useful about it.

That is where token exchange comes in. It is the mechanism that carries two identities in one token: the user on whose behalf the call is made, and the agent making it.

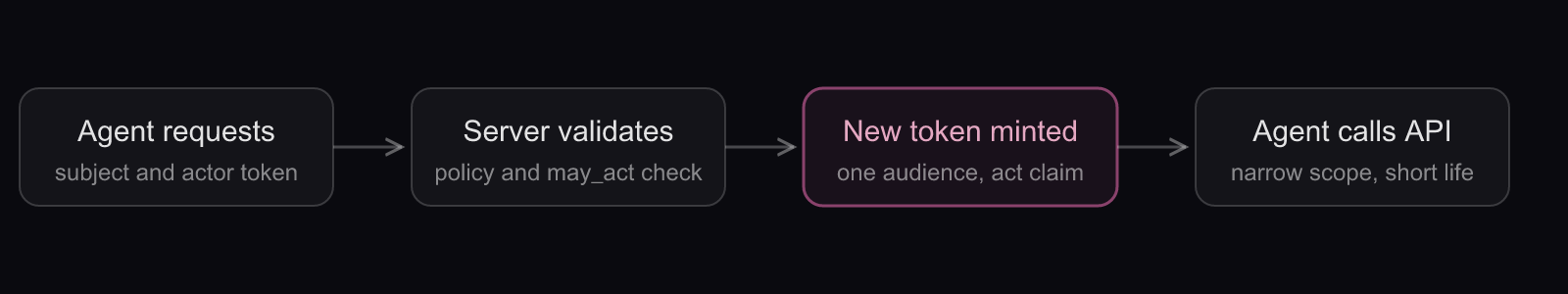

How the exchange works, step by step

In sequence:

1. The agent presents what it has. It POSTs to the token endpoint with the token-exchange grant type, a subject_token representing the user, and (for delegation) an actor_token representing itself.
2. The authorization server validates both tokens and applies policy. It checks that the subject token is live, that this actor is permitted to act for this subject, and that the requested scope is a subset of what the subject already granted.
3. A new token is minted. Narrower scope, an audience naming one resource server, a short expiry, and an act claim identifying the agent.
4. The agent calls exactly one API with it. The resource server validates the audience and rejects the token if it was minted for somebody else. The MCP authorization specification makes exactly that check mandatory.

Step 2 is the important one architecturally. It is the single point where a policy decision can be attached to a specific action, which is why the exchange endpoint tends to become the enforcement seam in an AI agent architecture rather than a plumbing detail.

The token exchange request, parameter by parameter

RFC 8693 adds one grant type and a handful of parameters to the existing token endpoint. There is no new protocol to deploy.

Parameter	Required	What it does	Why it matters for agents
grant_type	Yes	Fixed value urn:ietf:params:oauth:grant-type:token-exchange	Signals the exchange instead of a fresh authorization
subject_token	Yes	The token representing the party on whose behalf the request is made	This is the user, and it stays the user
subject_token_type	Yes	URI naming the token's type (access token, ID token, JWT, SAML assertion)	Lets you exchange an enterprise assertion, not just an access token
actor_token	No	The token representing the party the rights are being delegated to	Present means delegation. Absent means impersonation. This is the accountability switch
actor_token_type	With actor_token	URI naming the actor token's type	Required whenever an actor token is sent
audience	No	The logical name of the intended recipient	Binds the result to one service so it cannot be replayed elsewhere
resource	No	URI of the target service	The URI form of audience binding, defined by RFC 8707 Resource Indicators
scope	No	Requested scopes for the new token	Where you drop from "everything" to "read this one calendar"
requested_token_type	No	The type of token you want back	Ask for an access token for an API call, or an ID token to pass identity onward

Two rules govern the result. The issued token must never carry more privilege than the subject token already had, and the authorization server is free to return less than you asked for. A conforming server narrows silently, so never assume the scope you requested is the scope you received. Read it back.

What comes back, and the act claim

The response looks like an ordinary token response with two additions: issued_token_type, which tells you what you actually got, and the requirement that token_type be set to N_A when the issued token is not a bearer token.

Response field	Meaning
access_token	The issued token, whatever its type. The name is historical
issued_token_type	URI naming what was returned. Always check it, because the server may not have granted what you requested
token_type	Bearer, or N_A if the issued token is not usable as a bearer token
expires_in	Lifetime of the new token. Should be short
scope	The scopes actually granted, which may be narrower than requested

Inside a JWT result, two claims carry the delegation story:

Claim	Sits on	What it asserts
sub	The issued token	The user. Unchanged by delegation
act	The issued token	The current actor, the agent. Nests when delegation is chained, so the most recent actor is outermost
may_act	The subject token	Who is permitted to act for this subject. The authorization server's pre-authorization of the delegation

A delegated token for an agent called invoice-bot acting for dana@example.com carries sub of dana, an act naming invoice-bot, an aud of one billing API, and a scope of one operation. Every downstream log line now answers two questions instead of one: who wanted this, and what performed it. That pairing is what makes agent observability and audit trails possible at all, and it is why the exchange should mint short lifetimes rather than reuse one long-lived token. If you have not settled your lifetime policy yet, start with how short-lived credentials work and how long a token should actually live.

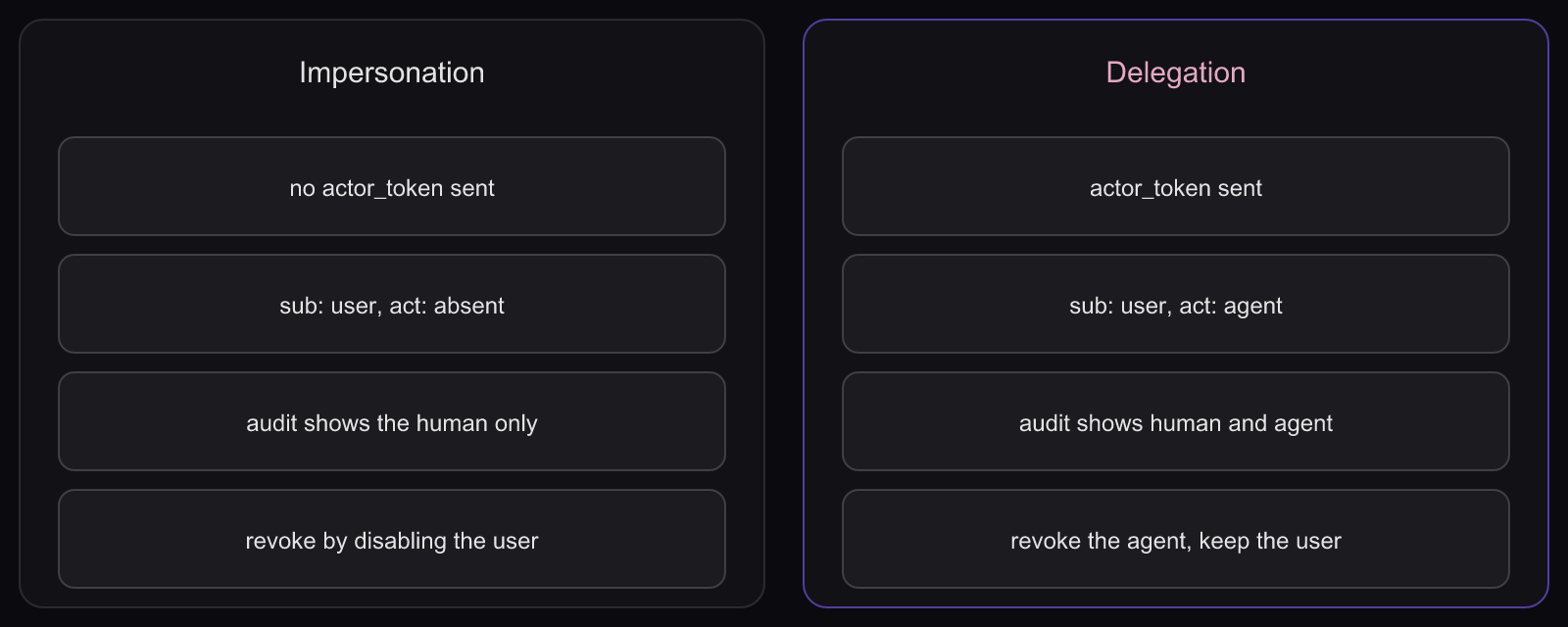

Delegation and impersonation: the one parameter that decides accountability

RFC 8693 supports two outcomes, and the specification is precise about the difference. Impersonation means the agent is given the user's rights and is indistinguishable from the user in that context. Delegation means the agent acts for the user while remaining itself, with both identities present in the token. Both are defined normatively in the specification rather than left to convention.

Question	Impersonation	Delegation
Is actor_token sent?	No	Yes
What does the resource server see?	The user	The user, acted for by the agent
Can you attribute an action to the agent?	No	Yes, from the act claim
Can you revoke the agent without locking out the person?	No	Yes
Can policy treat agent traffic differently?	No, it is invisible	Yes, the actor is a policy input
Where it is still reasonable	Break-glass tooling and legacy resource servers that cannot read act	Effectively every agent use case

The rule: if an autonomous system is making the call, send the actor token. Impersonation is a deliberate decision to destroy evidence, and it should require the same justification as turning off logging. When a resource server genuinely cannot understand act, keep the delegation at the exchange and record the actor there, rather than pretending the agent was a person.

Delegation also gives you somewhere to put a human. Because the exchange is a discrete, policy-evaluated moment, it is the natural place to require step-up authentication before a high-risk exchange instead of at the point the agent already holds a credential.

Token exchange for AI agents: three patterns

Three shapes of agent delegation cover most real deployments.

1. User-delegated tool call

A user asks an agent to do something in a system they have access to. The agent exchanges the user's session token for a task-scoped token: one audience, one or two scopes, minutes of life. The agent never sees the original credential's full reach, and if the agent is later found to have been manipulated, the damage is bounded by the scope of the exchange rather than by the user's job title. Identity platforms increasingly ship this as a managed capability: Frontegg's identity product for AI agent builders separates acting on behalf of a user from acting as the application itself, which is the same delegation-versus-service-account decision expressed as configuration.

2. Chained agent-to-agent delegation

An orchestrating agent hands work to a specialist agent. Each hop performs its own exchange, and the act claim nests: the token names the user as subject, the specialist as the current actor, and the orchestrator inside it. The result is a chain of custody you can read backwards from any log line. This is what makes delegation safe in multi-agent systems, where the alternative is a shared token that nobody can attribute. Cap the depth of the chain: every hop is another chance to widen scope by accident.

3. Cross-domain access

The agent needs a resource governed by a different authorization server, in a different trust domain. Token exchange is the mechanism that carries an assertion from one domain and produces a usable token in the next, which is the pattern the IETF's work on identity and authorization chaining across domains formalizes for enterprise deployments. In MCP deployments this is the everyday case, because the client, the server, and the downstream API frequently answer to three different identity providers. See how MCP identity and authentication fit together for the surrounding wiring.

Why token passthrough is the wrong answer

The tempting shortcut is passthrough: the server receives the caller's token and forwards it, unmodified, to whatever it calls next. It works on the first try, which is why it survives into production.

It also creates a confused deputy: a privileged intermediary using its position to perform an action the original caller was never authorized to request, because the downstream service cannot tell the difference between a token the intermediary validated and one it merely relayed. The Model Context Protocol specification forbids the pattern outright, requiring servers to reject tokens that were not issued for them and stating that an MCP server must not pass through the token it received from its client.

Token exchange is what you do instead. The server validates the inbound token, then exchanges it for a separate token whose audience is the downstream API, preserving the user in sub and itself in act. Three properties follow:

• A stolen token is worth one service, not all of them. Audience binding makes replay against a second API fail at validation, because JWT access tokens carry an audience claim the resource server is required to check.
• Every hop is authorized, not assumed. Policy runs at each exchange rather than once at the front door.
• The trail survives the hop. The nested actor chain means the third service still knows an agent was involved.

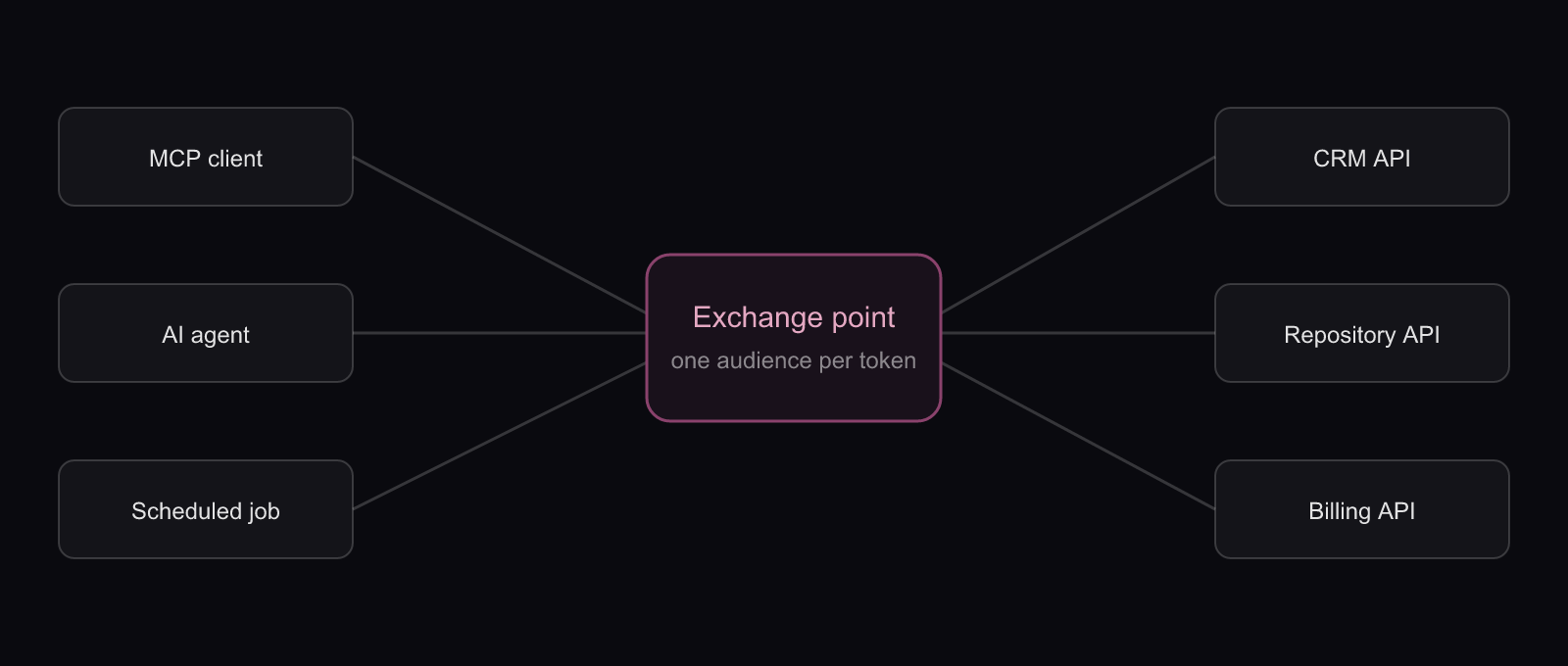

Where the exchange runs is an architecture choice. Doing it inside each service spreads the policy across every codebase. Doing it at a gateway keeps one place to change the rules, which is the usual argument for handling access control at the MCP gateway. If you are still mapping the basics, MCP authentication covers how the inbound side works.

Where token exchange fits with your other agent controls

Token exchange answers exactly one question: how the credential gets narrower. It is one control among several, and it is weak on its own.

Question	Control	Where it is covered
May this agent do this at all?	Authorization policy	Agent authorization sets the rules the exchange enforces
How does the token get narrower?	Token exchange (RFC 8693)	This page
How long does the credential live?	Short-lived credentials	Ephemeral credentials and token lifetime
Who approved this specific action?	Human approval gate	Human in the loop AI covers when an agent must stop and ask
Is the person really there right now?	Step-up authentication	Step-up authentication and when to trigger it
What actually happened afterwards?	Audit and observability	AI observability and agent audit logs

Read across that table and the shape of the thing appears: policy decides, the exchange enforces, the lifetime limits, the human approves, and the log proves. A stack missing any one row has a gap somebody will eventually find.

Failure modes and how to debug them

Most token exchange integrations fail in the same handful of ways.

Symptom	Likely cause	Fix
invalid_target	The requested audience or resource is unknown to the authorization server, or the client is not allowed to target it	Register the resource and confirm the exact URI, including trailing slash and scheme
invalid_request on a delegation attempt	actor_token sent without actor_token_type, or an unsupported token type URI	Always send the type alongside the token; the two are a required pair
Delegation silently becomes impersonation	The actor token was dropped by a proxy or never sent, and the server defaulted	Assert on the presence of act in the issued token, and fail closed when it is missing
Exchange rejected for an authorized agent	The subject token has no may_act naming this actor	Pre-authorize the delegation relationship at the identity provider rather than at call time
Downstream 401 with a valid-looking token	Audience mismatch: the resource server is correctly rejecting a token minted for a different service	Exchange per target rather than reusing one token across APIs
Scope narrower than requested, calls failing later	The server downscoped and the client never read the response scope	Read back scope and issued_token_type on every exchange
Exchange latency on every tool call	No caching of short-lived tokens per subject, actor, and audience triple	Cache by that triple for the token's lifetime, and never across subjects

What RFC 8693 does not give you

The specification is narrow on purpose, and it is worth being clear about the edges rather than discovering them in an incident review.

• No purpose binding. A token can say the agent may write to the billing API. It cannot say the agent may write this one invoice because this one person asked. Purpose lives in your policy engine, not in the token.
• No human-approval signal. There is no standard claim meaning "a person approved this action". If approval matters, you enforce it before the exchange and record it yourself.
• No revocation story. Short lifetimes are the mitigation the OAuth 2.0 security best current practice recommends. An issued token stays valid until it expires unless your resource servers do introspection.
• No agent identity. The exchange can only reference an actor that already exists. If your agents share a service account, delegation will faithfully record the wrong answer.
• No protection from a compromised agent. A manipulated agent will request exactly the scopes it is entitled to. Narrow tokens limit the blast radius of an over-scoped credential, but they do not detect misuse.

An implementation checklist

1. Give every agent its own identity before you attempt delegation. Shared service accounts make the act claim meaningless.
2. Enable the token-exchange grant on your authorization server and confirm it supports the actor parameters, not just scope downscoping.
3. Pre-authorize delegation relationships with may_act rather than allowing any client to act for any subject.
4. Exchange once per downstream audience. Never reuse a token across two APIs.
5. Always send actor_token and actor_token_type. Treat a missing act claim in the result as a failure.
6. Request the minimum scope the specific task needs, then read back the granted scope.
7. Set lifetimes in minutes, sized to the operation rather than to the session.
8. Validate aud on every resource server, and reject anything not issued for you.
9. Log subject, actor, audience, scope, and outcome at the exchange point, which is the only place that sees all five.
10. Route high-risk exchanges through a human approval or step-up gate before the token is ever minted.

Where the standards are heading

Agent delegation is an active area at the IETF, and the work builds on token exchange rather than replacing it.

• Identity Assertion JWT Authorization Grant (ID-JAG) profiles the JWT grant so an enterprise identity assertion can obtain access in another trust domain without re-prompting the user, which is the cross-domain gap token exchange alone leaves open.
• AI agent authentication drafts are converging on the position that agents crossing trust domains should use identity chaining or its derived specifications, and that transaction tokens can be exchanged for downstream access tokens.
• Agent-specific grant proposals such as the Delegated Agent Authorization Protocol add cryptographic agent identity and an explicit human-consent grant, addressing the approval signal the base specification lacks.
• OAuth Client ID Metadata Document, often searched as OAuth CIMD, lets a client be identified by a URL that resolves to its metadata instead of pre-registering with every authorization server. For fleets of agents that appear and disappear, that removes a registration step that does not scale.

None of this is settled, and betting an architecture on a draft is a choice to keep rewriting it. Build on RFC 8693 today, and keep the exchange behind an interface you control so you can adopt whatever wins.

Frequently asked questions

What is OAuth 2.0 token exchange used for?

It is used to trade one token for another with different properties: a narrower scope, a single audience, a shorter lifetime, or a different token type. Services use it to call downstream APIs on a user's behalf without forwarding the user's original credential, and AI agents use it to obtain task-scoped access.

What is the difference between delegation and impersonation in OAuth?

Impersonation issues a token in which the client is indistinguishable from the user, so downstream systems see only the person. Delegation keeps both identities: the user stays in the subject claim and the client appears in the actor claim. Delegation preserves attribution and lets you revoke the agent alone.

What does the actor_token parameter do in RFC 8693?

The actor_token identifies the party receiving the delegated rights, normally the agent or service making the call. Sending it, with its matching actor_token_type, is what turns an exchange into delegation and produces the act claim. Omit it and the authorization server issues an impersonation token instead.

Is OAuth token exchange the same as the on-behalf-of flow?

They solve the same problem, and vendor on-behalf-of flows are usually implementations or close relatives of RFC 8693. The difference is portability: token exchange is the standardized grant type, while an on-behalf-of flow may add vendor-specific parameters and behavior. Prefer the standard shape where your provider supports it.

Does OAuth 2.1 include token exchange?

No. OAuth 2.1 consolidates the core framework and removes legacy grants such as the implicit and password flows. Token exchange remains a separate extension defined by RFC 8693, and you enable it alongside OAuth 2.1 rather than getting it automatically.

How does token exchange stop an MCP server from passing a user token downstream?

It gives the server a correct alternative. Instead of forwarding the inbound token, the server validates it, then exchanges it for a new token whose audience is the downstream API, with the user as subject and itself as actor. The MCP specification requires this by forbidding passthrough outright.

Governing the exchange, not just performing it

Token exchange is a small specification with an outsized consequence. The moment a broad credential becomes a narrow one is the moment you decide whether anybody will be able to reconstruct what an agent did and why. Get it right and every action carries the human who asked and the agent that acted. Get it wrong, or skip it, and your logs will confidently attribute an autonomous system's mistakes to an employee.

Doing that consistently across a fleet of agents is an operational problem, not a protocol one. It means every agent having a real identity, every exchange evaluated against policy, and every actor chain landing somewhere you can query later. That is what an identity-native foundation for AI agents is for. If you want to see what per-action delegation and attribution look like on your own stack, book a walkthrough with our team.
